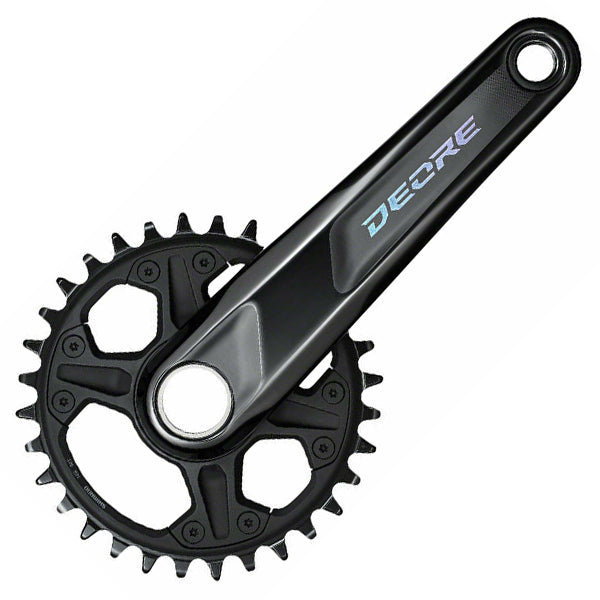

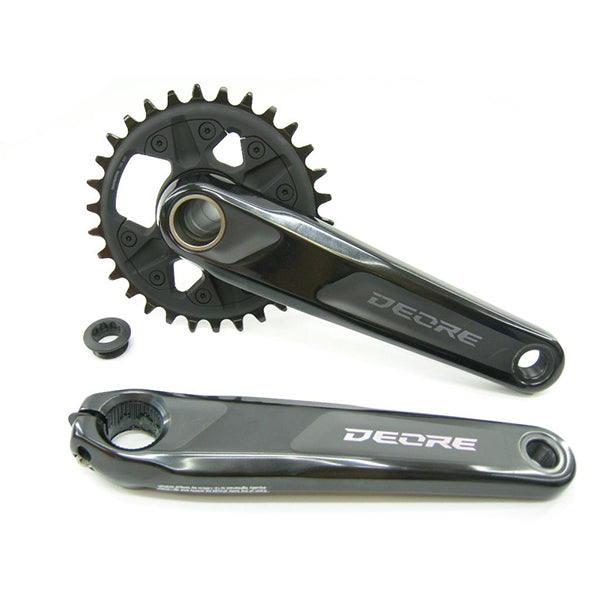

The SHIMANO DEORE FC-M6100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172 mm Q-factor that is compatible with 142 mm or 148 mm O.L.D. frames.
|
MODEL NO |
FC-M6100-1 |
|
SERIES |
DEORE M6100 Series |
|
Color |
Series color |
|
Rear speeds |
12 |
|
Compatible chain |
HG 12-speed |
|
Chain line (mm) |
52 |
|
O.L.D.|Thru (mm) |
142, 148 |
|
O.L.D.|QR/Nut (mm) |
135, 141 |
|
P.C.D. (mm) |
Direct |
|
Spider/gear arms |
4 |
|
Chainring combination |
30T, 32T |
|
Q-factor (mm) |
172 |
|
Crank arm length (mm)|165 |
✔ |
|
Crank arm length (mm)|170 |
✔ |
|
Crank arm length (mm)|175 |
✔ |
|
Optional chain guard|Without chain/bash guard |
✔ |
|
2-PIECE CRANKSET |
✔ |
|
Compatible bottom bracket type|Outboard |
✔ |
|
Recommended bottom bracket|Threaded (normal) |
BB-MT501 |
|
Recommended bottom bracket|Press-Fit |
BB-MT500-PA |
|
Threaded bottom bracket shell width (mm)|68 |
✔ |
|
Threaded bottom bracket shell width (mm)|73 |
✔ |
|
Crank fixing screw included |
✔ |
